Are you in search of a superior pump solution for your sewage, septic, or effluent systems? The Little Giant 10SC-CIA-RF, known for its robust construction and remarkable performance, offers a promising option. Let us explore the features, benefits, and specifications of this product to understand why it stands out.
Overview of Little Giant 10SC-CIA-RF

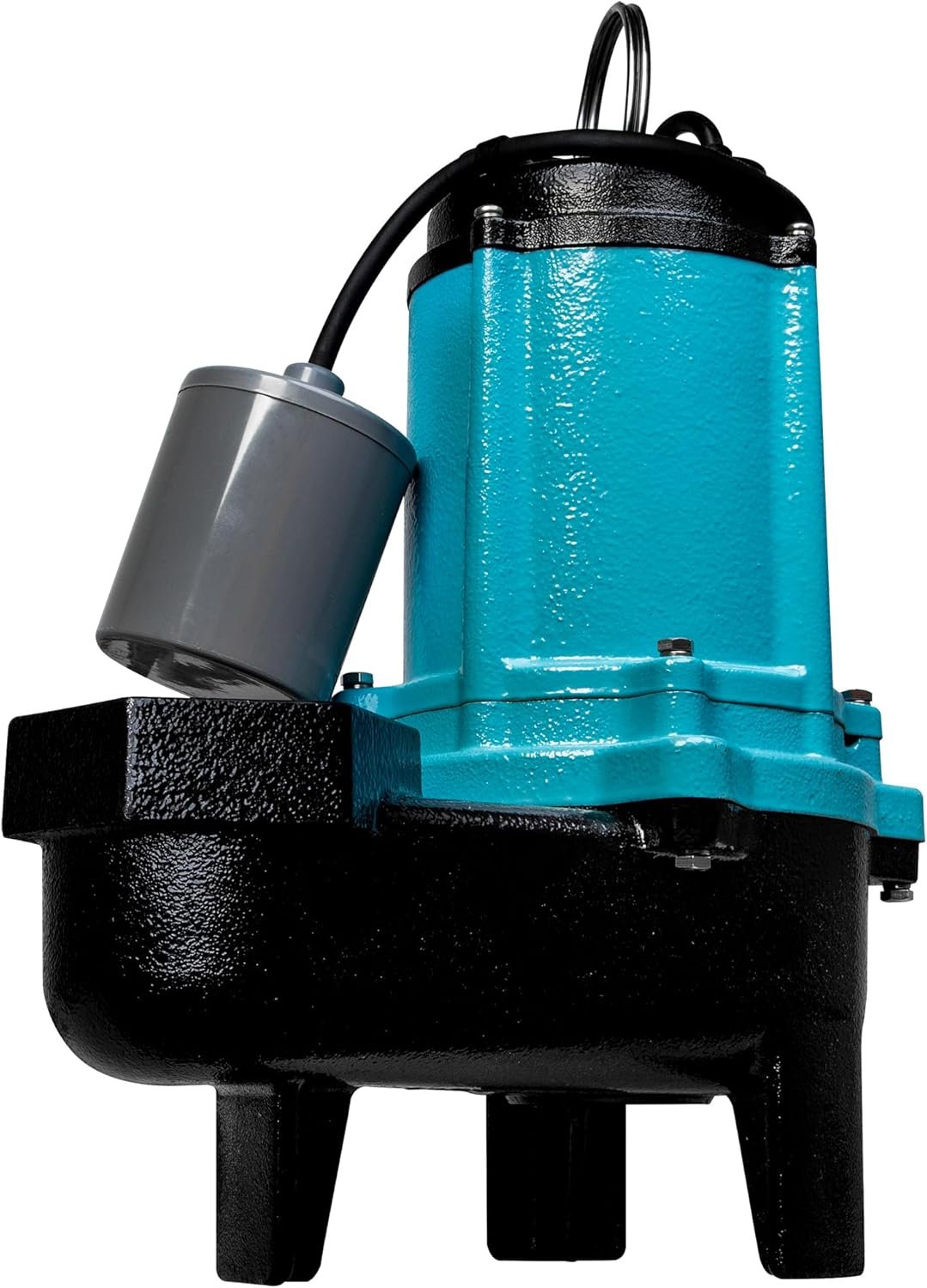

The Little Giant 10SC-CIA-RF is an automatic submersible sewage/effluent pump, designed to offer reliable and efficient water management solutions for both residential and commercial applications. With a built-in piggyback mechanical float switch, this pump automatically activates or deactivates based on the liquid levels, ensuring ease of use and consistent performance.
Key Features
Understanding the core features of the Little Giant 10SC-CIA-RF is essential in assessing its suitability for your application. Below is a breakdown of its primary features:

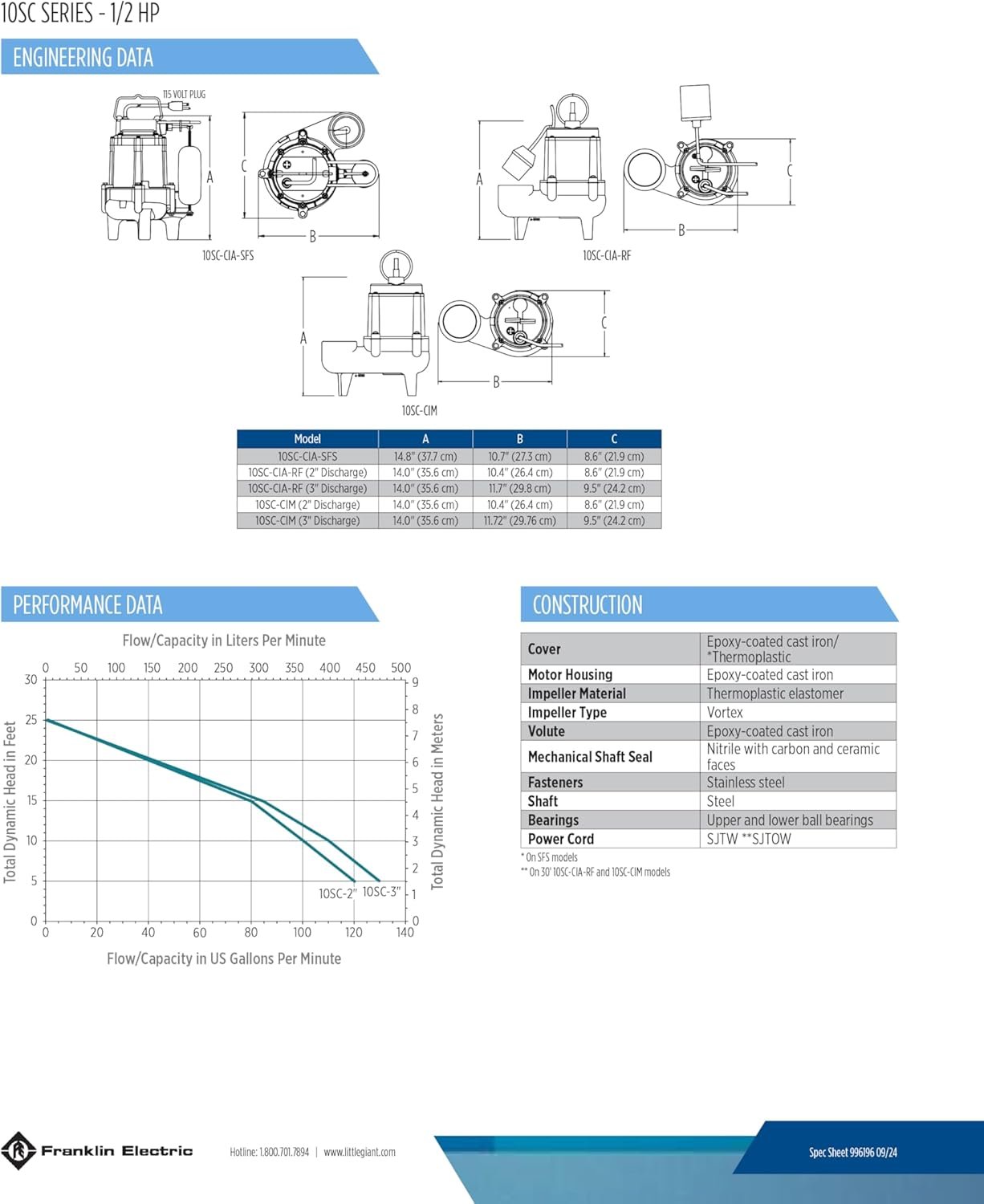

| Feature | Details |
|---|---|
| Material | Epoxy-coated cast iron housing, cover, and volute |
| Impeller Type | Thermoplastic elastomer vortex-type |
| Motor Type | 1/2 HP, Permanent Split Capacitor (PSC) motor |
| Switch Mechanism | Piggyback mechanical float switch |
| Solids Handling | Capable of handling solids up to 2 inches in diameter |
| Discharge Size | 3-inch FNPT |
| Cord Length | 20 feet |
| Flow Rate | 7800 GPH (gallons per hour) at 5-ft. lift |
| Maximum Temperature | 140°F liquid temperature rating |
| Certifications | CSA listed in the USA and Canada |
The robust construction and thoughtful engineering of this pump illustrate its potential as a reliable piece of equipment in various water management systems.
Performance and Efficiency
Motor Specifications
Equipped with a powerful 1/2 HP motor, the Little Giant 10SC-CIA-RF is designed for continuous duty. It boasts an impressive flow rate capable of moving up to 7800 gallons per hour at a 5-foot lift, illustrating its efficiency in handling substantial water volumes. The motor, characterized by its permanent split capacitor, operates at 60 Hz with a full-load current draw of 11.5 running amps and 1270 watts. These specifications highlight the pump’s capacity to perform under demanding conditions.
Solid Handling Capability
One of the outstanding features of this pump is its solid-handling capability. It can manage solids up to 2 inches in diameter effectively, making it ideal for sewage, septic, or effluent systems. This capability ensures the pump operates optimally without frequent clogs or maintenance interruptions, creating a seamless experience for the user.
Temperature and Shutdown Features
The pump’s capacity to handle liquids with temperatures as high as 140°F is another favorable aspect. This versatility in temperature tolerance makes it suitable for diverse applications where fluid temperatures may vary. Additionally, the unit features an automatic shut-off mechanism at a 25-foot lift, which is vital in preventing the pump from operating under dry conditions, thereby extending its lifespan.
Construction and Durability
Material and Design
Constructed with epoxy-coated cast iron for the housing, cover, and volute, this pump promises longevity and robustness. The durable materials resist corrosion and abrasion, essential characteristics for equipment exposed to harsh environments and elements. In conjunction with the thermoplastic elastomer vortex-type impeller, this pump is engineered to deliver long-term performance and reduced downtime.
Mechanical Seals and Bearings
The presence of nitrile/carbon/ceramic mechanical shaft seals enhances the pump’s endurance against wear and tear. Furthermore, the incorporation of upper and lower ball bearings ensures smooth and efficient motor operation, minimizing friction and potential mechanical failures over time.
Installation and Maintenance
Ease of Installation
Installing the Little Giant 10SC-CIA-RF is made easy with its detailed design considerations. The piggyback mechanical float switch provides an automatic activation feature, eliminating the need for manual operation and enabling effortless integration into existing systems. With a 20-foot power cord, the pump offers flexibility and convenience during installation.
Maintenance Requirements
In terms of maintenance, the epoxy-coated cast iron construction and vortex-type impeller signify minimal upkeep. Regular inspections are advisable to ensure optimal performance, but the need for extensive maintenance is typically minimal due to the pump’s resilient design and high-quality components.
Pros and Cons
Advantages
- Robust Construction: Made from epoxy-coated cast iron, ensuring durability and long lifespan.
- High Flow Rate: Capable of moving up to 7800 GPH, making it suitable for heavy-duty applications.
- Solids Handling: Effectively manages solids up to 2 inches in diameter.
- Automatic Operation: Mechanical float switch for automatic pump activation and deactivation.
- Temperature Tolerance: Handles liquid temperatures up to 140°F.
Disadvantages
- Weight: The robust cast iron construction might lead to a heavier unit, which could be challenging during installation.
- Price: High-quality construction and superior features may reflect a higher price point compared to other pumps.
Conclusion
The Little Giant 10SC-CIA-RF stands as a premiere choice in the market for automatic submersible sewage/effluent pumps. With its powerful motor, robust design, and additional features such as solids handling and temperature resilience, it provides a reliable solution for managing various water systems. Whether used in residential or commercial applications, this pump promises efficiency, durability, and excellent performance, ensuring a sound investment for those in need of a reliable water management system.
